Serving with lates technologies, great value for money, above industrial standards requirements

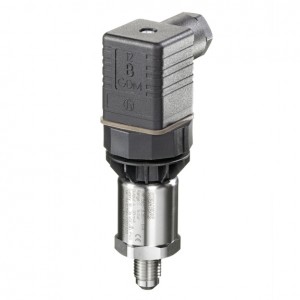

SITRANS transmitters P200, P210 and P220 are compact single-range-transmitters for measurement of absolute and gauge pressure. In this series we use two different kinds of pressure sensors: two stainless steel sensors and one ceramics sensor. So the measurement of process pressure, absolute pressure and hydrostatic pressure is an easy thing. The measured pressure will be transformed with these sensors into a 4…20-mA- resp. a 0…10-V-signal.
Nonlinearity | ≤ 0.25 % |
Long-Term Stability | ≤ 0.25 % / 12 Months |
Measuring range | SITRANS P200: 1 bar to 60 bar gauge | 06 bar to 16 bar absolute SITRANS P210: 100 mbar to 600 mbar gauge SITRANS P220: 2,5 bar to 600 bar gauge |

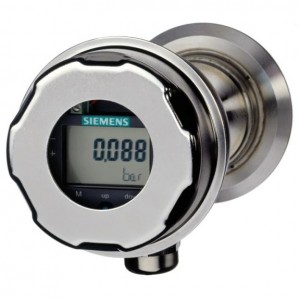

SITRANS P 300 offers the measuring precision and ruggedness already known from the SITRANS P DSIII. Its stainless steel housing with laser-printed nameplate, together with a wide range of hygienic process connections, mean that it is highly suitable for use in the food & beverages industry as well as for pharmaceutical processes. With a maximum deviation in measurement of 0.075% and the proven operating philosophy, it fits seamlessly into the SITRANS P family.
Accuracy | ≤ 0.075 % |
Long-Term Stability | ≤ 0.25 % / 12 Months |
Measuring range |
0 - 10 mbar (0-4 inch H2O) to 0 - 400 bar (0-5800 psi) |

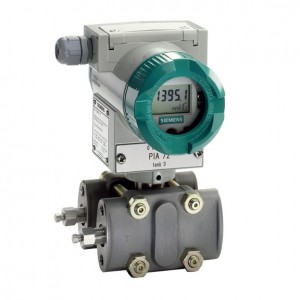

SITRANS P DSIII series includes digital pressure transmitters for measuring gauge pressure, absolute pressure, differential pressure, flow and level. Even the standard devices offer comprehensive diagnostics and simulation functions with high reliability. The suitability for use in SIL2 circuits has been certified by external test institutes.
With Profibus transmitters, the new PROFISAFE technology guarantees uniform safety from the control system down to the transmitter.
Accuracy | ≤ 0.075 % |
Long-Term Stability | ≤ 0.25 % / 60 months |
Measuring range | 0 – 10 mbar (0 – 0,4 inchH2O) to 0 – 400 bar (0 – 5800 psi) |
