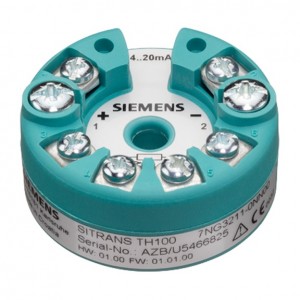

SITRANS TH100
SITRANS TH100 is rigid designed for economic use.
For example with saving of the galvanic insulation, which is not need for PT100.
Therefore the TH100 offers economic plant operation and reliable measurements.
It is an ideal substitute for over aged analogue PT100 transmitters. Setup is quick and easy with the transmitter-modem and SIPROM T.
This configuration tool can be downloaded for free.
Detail
| Input |
Pt 100 resistance |
| Output |
4 to 20 mA |
Benefits
- Measures temperature with a linear output signal
- High accuracy across entire ambient temperature range
- Reduces plant noise
- Alarm signal for sensor break or short circuit according NAMUR 43
- Explosion protected executions for US, Canada and Europe
- Slim design, ideal for upgrade of installed PT100 probes with a 4-..20mA signal

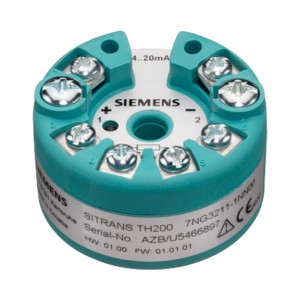

SITRANS TH200
SITRANS TH200 is designed to support all common RTDs, thermocouples, resistance and millivolt-sensors.
Setup is quick and easy with the transmitter-modem and SIPROM T software.
This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-..20mA loop,
the output current can read directly with a multimeter. A red/green LED shows the technician the status at a glance.
Detail
| Input |
Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources |
| Output |
4 to 20 mA |
Benefits
- Measures temperature with a linear output signal
- High accuracy across entire ambient temperature range
- Reduces plant noise
- Alarm signal for sensor break or short-circuit according NAMUR 43
- Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21
- Saves expensive compensation cables with the internal reference junction
- Galvanic insulation for accuracy and safety in thermocouple applications
- Single- or dual-point trim
- Custom characteristic curve for application of non-standard sensors
- Difference- and average- measurement
- Explosion protected executions for US, Canada and Europe
- Rugged design, fully potted electronics

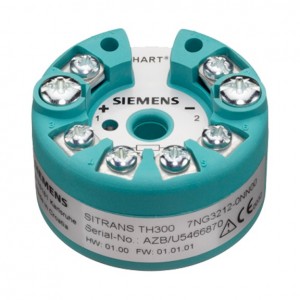

SITRANS TH300
SITRANS TH300 with HART- protocol is designed to support all common thermocouples, resistance and millivolt sensors.
Setup is quick and easy with SIMATIC PDM or handheld communicator.
Unique user-friendly details are implemented: Without opening the 4..20mA loop the output current can read out directly with a multimeter.
A red/green LED shows the technician the status at a glance.
Detail
| Input |
Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources |
| Output |
4 to 20 mA, HART |
Benefits
- Measures temperature with a linear output signal
- High accuracy across entire ambient temperature range
- Reduces plant noise
- Alarm signal for sensor break or short-circuit according NAMUR 43
- Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21
- Saves expensive compensation cables with the internal reference junction
- Galvanic insulation for accuracy and safety in thermocouple applications
- Single- or dual-point trim
- Custom characteristic curve for application of non-standard sensors
- Difference- and average- measurement
- Extensive diagnosis: e.g. drag indicator and time meter
- Set of output current for simulation
- Explosion protected executions for US, Canada and Europe
- Rugged design, fully potted electronics

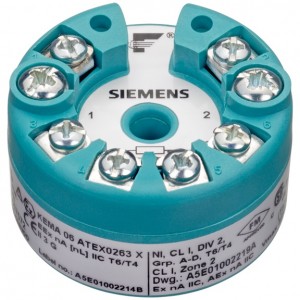

SITRANS TH400
SITRANS TH400 is available either with PROFIBUS PA or FOUNDATION Fieldbus (FF).
It is designed to support all common RTD, thermocouple, resistance and millivolt sensors.
Setup is quick and easy with SIMATIC PDM(PA) or AMS and handheld communicator(FF).
Due to its small size, the device allows flexible mounting options, even in a DIN Type B connection head.
Detail
| Input |
Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources |
| Output |
PROFIBUS PA (variant), Foundation Fieldbus (variant) |
Benefits
- Linearization of the sensor values
- High accuracy across entire ambient temperature range
- Reduces plant noise
- Alarm signal for sensor break or short-circuit
- Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21
- Saves expensive compensation cables with the internal reference junction
- Galvanic insulation for accuracy and safety in thermocouple applications
- Single- or dual-point trim
- Custom characteristic curve for application of non-standard sensors
- Difference- and average- measurement
- Measuring value of second sensor for redundancy
- Extensive diagnosis
- Simulation mode
- Explosion protected executions for US, Canada and Europe
- Rugged design, fully potted electronics
