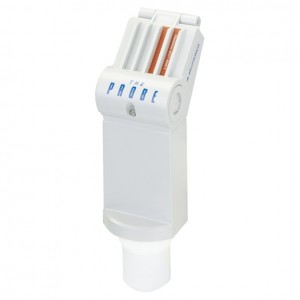

The Probe is a short-range integrated ultrasonic level transmitter, ideal for liquids and slurries in open or closed vessels. The transducer is available in PVDF copolymer, making the device suitable for use in a wide variety of applications. The Probe is easy to install and maintain, and can be quickly removed for cleaning as required by the food, beverage and pharmaceutical industries. The reliability of the level data is based on the Sonic Intelligence echo processing algorithms. A filter discriminates between the true echo and false echoes from acoustic or electrical noises and agitator blades in motion. The ultrasonic pulse propagation time to the material and back is temperature-compensated and converted into distance for display, analog output and relay actuation.
Key Applications: chemical storage vessels, filter beds, mud pits, liquid storage vessels, food applications
Range | 0.25 to 5 m (0.8 to 16.4 ft) |
Process temperature | -40 to 60 °C (-40 to 140 °F) |
Output |
|

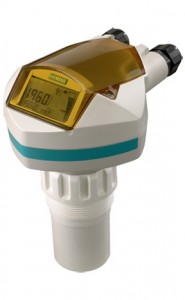

SITRANS Probe LU is a 2-wire loop powered ultrasonic transmitter for level, volume and flow monitoring of liquids in open channels, storage vessels and simple process vessels. The SITRANS Probe LU is ideal for level monitoring in the water and wastewater industry and chemical storage vessels.
The range of SITRANS Probe LU is 6 or 12 m (20 or 40 ft). Using Auto False-Echo Suppression for fixed obstruction avoidance, as well as an improved signal-to-noise ratio and improved accuracy of 0.15% of range or 6 mm (0.25″), the Probe LU provides unmatched reliability. SITRANS Probe LU includes Sonic Intelligence® signal processing from the field-proven Probe and incorporates new echo processing features and the latest micro-processor and communications technology. The Probe LU offers two communications options: HART or PROFIBUS PA (Profile version 3.0, Class B).
The transducer on the Probe LU is available as ETFE or PVDF to suit the chemical conditions of your application. As well, for applications with varying material and process temperatures, the Probe LU incorporates an internal temperature sensor to compensate for temperature changes.
Key Applications: chemical storage vessels, filter beds, liquid storage vessels.
Range | 0.25 to 12 m (0.8 to 39 ft) |
Process temperature | -40 to 85 °C (-40 to 185 °F) |
Output |
|
Echomax® XPS/XCT transducers use ultrasonic technology to measure level in a wide range of liquids and solids. The transducers can be fully immersed, are resistant to steam and corrosive chemicals and can be installed without flanges. The XPS series offers versions for various measuring ranges up to 40 m (130 ft) and up to a max. temperature of +95 °C (+203 °F). The XCT series can be used in applications at higher temperatures to measure level up to a distance of 12 m (40 ft) and at a max. temperature of +145 °C (+293 °F). During operation, the Echomax transducers emit acoustic pulses in a narrow beam. The level monitor measures the propagation time between pulse emission and its reflection (echo) to calculate the distance.
Max. range | XPS-10: 10 m (33 ft) XPS-15: 15 m (50 ft) XPS-30: 30 m (98 ft) XPS-40: 40 m (130 ft) XCT-8: 8 m (26 ft) XCT-12: 12 m (40 ft) |
Min. range | XPS-10 / XPS-15: 0.3 m (1 ft) XPS-30: 0.6 m (2 ft) XPS-40: 0.9 m (3 ft) XCT-8 / XTC-12: 0.6 m (2 ft) |
Max. temp. | XPS-series: 95 °C (203 °F) XCT-8: 145 °C (293 °F); Sanitary: 125 °C (260 °F) XCT-12: 145 °C (293 °F) |
Frequency | XPS-10 / XPS-15: 44 kHz XPS-30: 30 kHz XPS-40: 22 kHz XCT-series: 44 kHz |

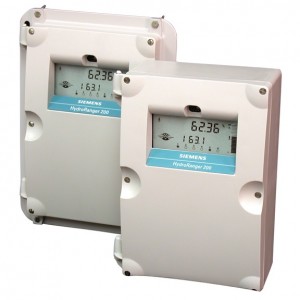

HydroRanger 200 is an ultrasonic level controller for up to six pumps and provides control, differential control and open channel flow monitoring. For water authorities, municipal water and wastewater plants, HydroRanger 200 is an economical, low-maintenance solution delivering control efficiency and productivity needed to meet today’s exacting standards. It offers single point monitoring with all models, and optional dual-point monitoring with 6 relay model. As well, it has digital communications with built-in Modbus RTU via RS-485. The standard 6 relay HydroRanger 200 will monitor open channel flow and features more advanced relay alarming and pump control functions as well as volume conversion. It is compatible with SIMATIC PDM, allowing for PC configuration and setup. Sonic Intelligence® advanced echo-processing software provides increased reading reliability. The optional 1 or 3 relay models provide accurate level measurement functions only; these two models do not provide open channel flow, differential level measurement or volume conversion functions.
HydroRanger 200 uses proven continuous ultrasonic echo ranging technology to monitor water and wastewater of any consistency up to 15 m (50 ft) in depth. Achievable resolution is 0.1% with accuracy to 0.25% of range. Unlike contacting devices, HydroRanger 200 is immune to problems caused by suspended solids, harsh corrosives, grease or silt in the effluent, reducing downtime.
Key Applications: wet wells, flumes/weirs, bar screen control.
Range | 0.3 to 15 m (1 to 50 ft) |
Compatible transducers | XRS-5, ST-H, XPS-10, XPS-15, XCT-8, XCT-12 |
Output |
|

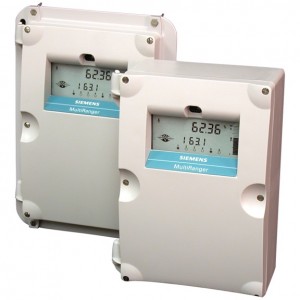

MultiRanger is a versatile short to medium-range ultrasonic single and multi-vessel level monitor/controller for virtually any application in a wide range of industries. MultiRanger can be used on different materials, including fuel oil, municipal waste, acids, woodchips or on materials with high angles of repose. MultiRanger offers true dual point monitoring, digital communications with built-in Modbus® RTU via RS-485, as well as compatibility with SIMATIC PDM, allowing PC configuration and setup. MultiRanger features Sonic Intelligence® advanced echo-processing software for increased reading reliability.
MultiRanger 100 offers cost-effective level alarming, as well as on/off and alternating pump control. MultiRanger 200 will monitor open channel flow and features more advanced relay alarming and pump control functions as well as volume conversion. It is compatible with chemical-resistant Echomax® transducers that can be used in hostile environments at temperatures as high as +145 °C (+293 °F).
Key Applications: wet wells, flumes/weirs, bar screen control, hoppers, chemical storage, liquid storage, crusher bins, dry solids storage.
Range | 0.3 to 15 m (1 to 50 ft) |
Compatible transducers | XRS-5, ST-H, XPS-10, XPS-15, XCT-8, XCT-12 |
Output |
|
